Description

CraneLine

Crane Hazard Indication Laser

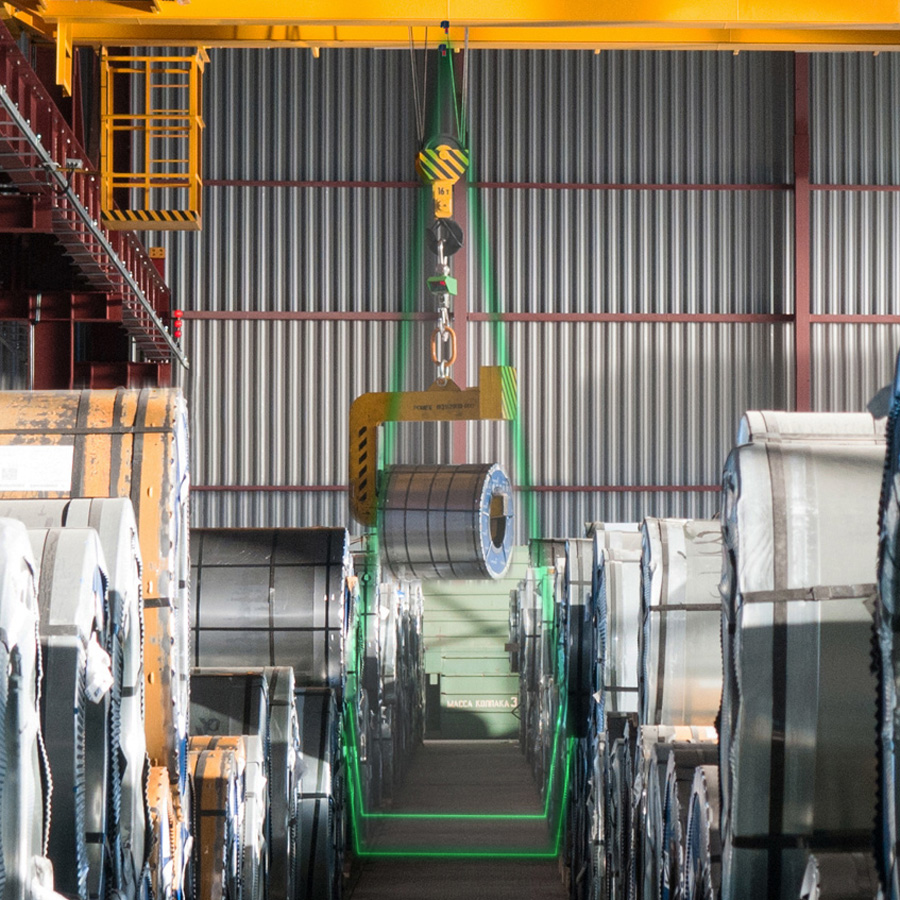

Instantly identify obstructions and overhang clearances to ensure a safe work area. Quickly determine your crane's load placement point from one location and easily know your reach-in/up distance. Improves crane tip visibility to help determine proximity to objects below or above the crane tip. Green is approximately 5 times more visible than red.

Key Features:

• ● Projects highly visible red or green lines for visibility in all lightning conditions
• ● EASY TO INSTALL
• ● Eye Safe – IEC/FDA class IIIB/3R
• ● Adjustable mounting bracket allows for easy positioning of the beam on the floor
• ● Projection Type: Line
• ● Water Resistant: IP68
• ● Ideal Mounting Distance: up to 40 feet

Possible Projection Configurations:
• ● Single Projection Beam
• ● Dual Beam Projection – leading and trailing
• ● Tri Beam Projection – Hazard area projection

Benefits:
• ● Reduce incidents of human error injury - increases pedestrian and operator awareness of moving equipment or temporary machinery installations.
• ● High visibility illuminated projections provide the pedestrian with clear knowledge of their proximity to moving equipment.
• ● Warns pedestrians from walking under a suspended/overhead load.
• ● Audible alarms do not provide pedestrians with a sense of proximity to moving equipment due to ambient noise spikes in the work zone

Specifications:
• ● Output Power: 40 mW
• ● Available Colours: Red/ Green
• ● Available Beam Projections: Line
• ● Eye Safe – IEC/FDA class IIIB/3R
• ● Input Voltage: 3V DC (AC power supply supplied)
• ● Beam Spread Angle: various (up to 100°)
• ● Mounting: Multiple 1/4-20 and M4 mounting points
• ● Dimensions: 229x98x234 mm (9” x 3.9” x 9.2”)
• ● Operating Temperature: -10 to + 40° C
• ● Material: Aluminum
• ● Waterproof Rating: IP68
• ● Working Lifetime: up to 8,000 hours

The Hazard Safety Projection Series was developed to address the safety concerns in warehouses, dock and loading areas, or any industrial workplace area where heavy mobile equipment shares workspace with pedestrians. These products were researched and developed by Laserglow in conjunction with some of the leading lighting manufacturers in the industry.
